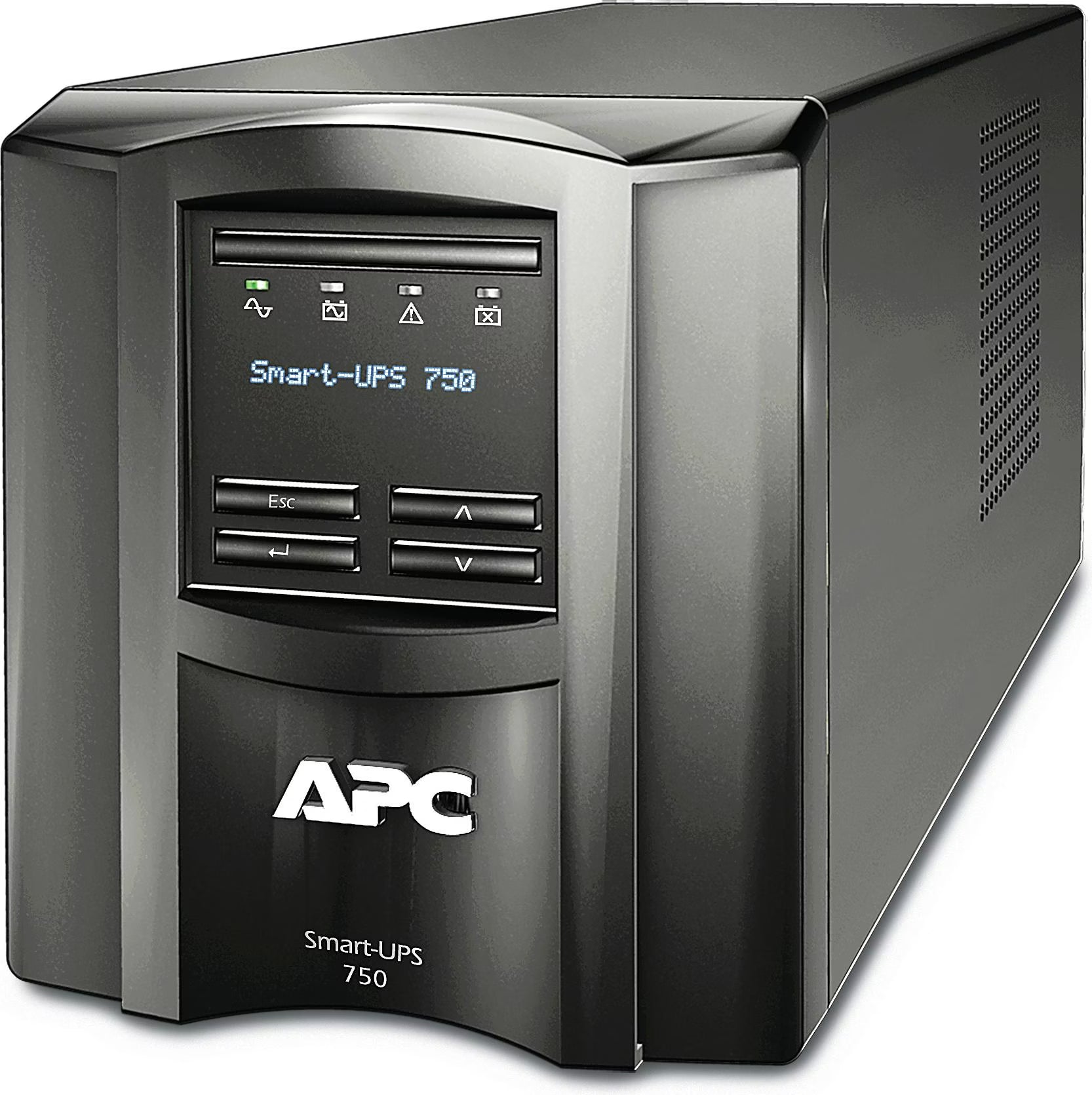

APC Smart-UPS 750 VA, 500 W, Line-Interaktiv USV

APC Smart-UPS SMT750IC – 750 VA / 500 W – Line-Interactive – Sinewave Output

The APC Smart-UPS SMT750IC is a professional line-interactive UPS designed for workstations, servers, network devices and small server rooms. It delivers 750 VA / 500 W of reliable power, true sinewave output, automatic voltage regulation, extensive protection features and intelligent battery management.

⭐ Highlights

• 750 VA / 500 W line-interactive UPS
• True sinewave output
• Automatic Voltage Regulation (AVR)
• Protection: frequency variation, overvoltage, undervoltage
• Runtime: 5 min at full load / 16 min at half load
• VRLA industrial battery (2× cells, 146 Wh)
• USB-A and RS-232 communication
• Low noise level: 40 dB
• High efficiency: 98% (line mode & battery mode)

🔧 Technical Specifications

⚙️ UPS

• Type: Line-Interactive UPS
• Power output: 500 W
• Energy capacity: 750 VA
• Waveform: Sinewave
• Application: Workplace, home office, server room
• Protection: frequency variation, overvoltage, undervoltage
• Efficiency (full load): 98%
• Efficiency (battery mode): 98%

🔌 Input & Output

• Input voltage range: 160–280 V
• Input frequency: 50–60 Hz
• Output voltage: 220–240 V
• Output frequency: 47 / 53 Hz
• Connector type: C13 + IEC jumpers
• Surge protection energy: 540 J

🔋 Battery

• Battery type: VRLA industrial battery
• Number of cells: 2×
• Battery capacity: 7 Ah
• Energy: 146 Wh
• Charging time: 3 h
• Runtime at full load: 5 min
• Runtime at half load: 16 min

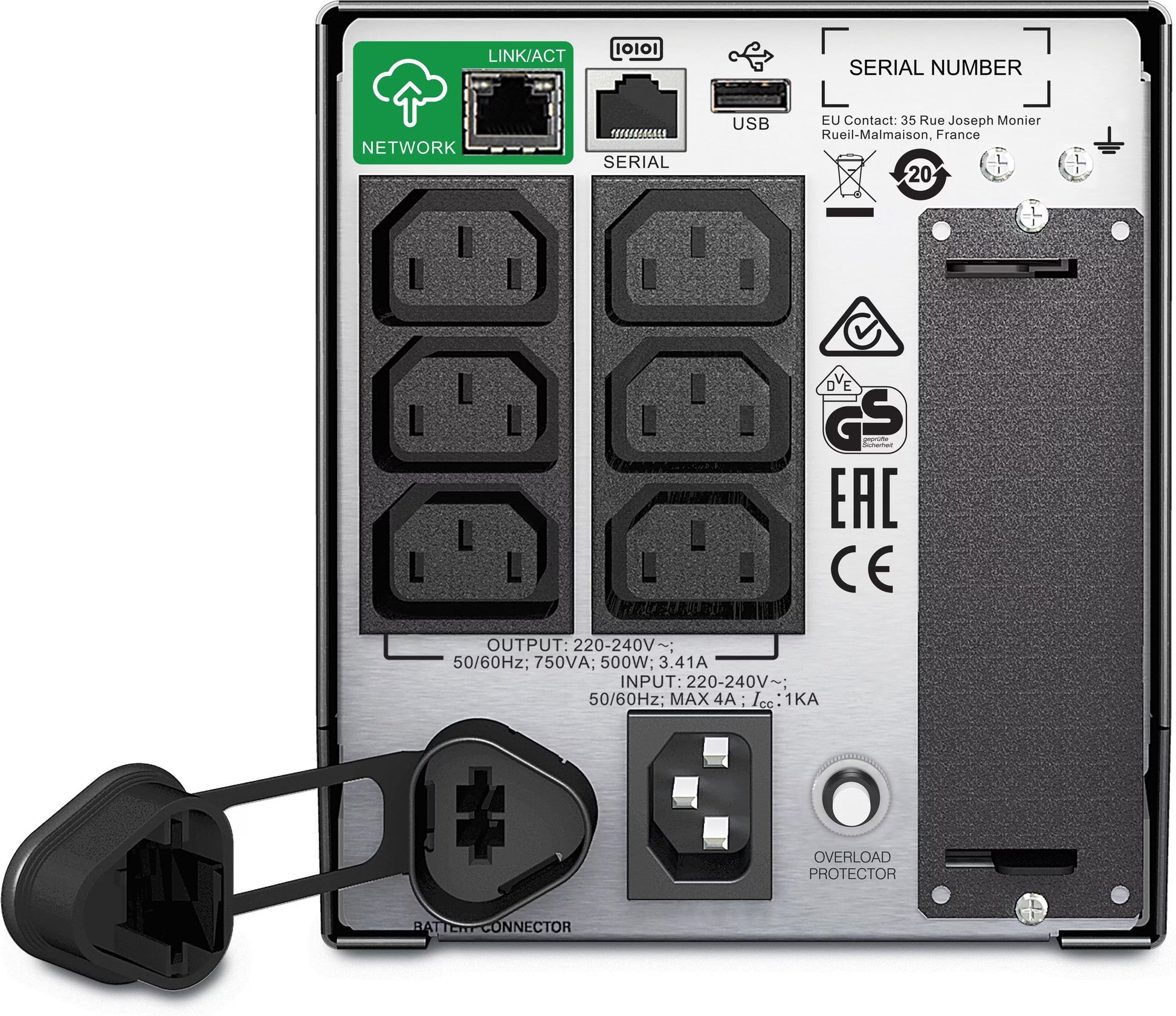

📡 Connectivity

• USB-A port
• RS-232 port (1×)

📐 Dimensions & Weight

• Length: 363 mm
• Width: 161 mm
• Height: 138 mm
• Weight: 13.18 kg

🌡️ Operating Conditions

• Operating temperature: 0–40 °C
• Max. temperature: 40 °C
• Humidity: 0–95%
• Noise level: 40 dB

📦 Package Contents

• CD-ROM
• User manual CD
• Intelligent RS-232 cable
• USB cable

🛡️ Manufacturer Info

• Brand: APC
• Model: SMT750IC
• Release date: 2018-10-01
• Country of origin: China
• CO₂ emissions: 74.44 kg
• Climate contribution: EUR 1.84
